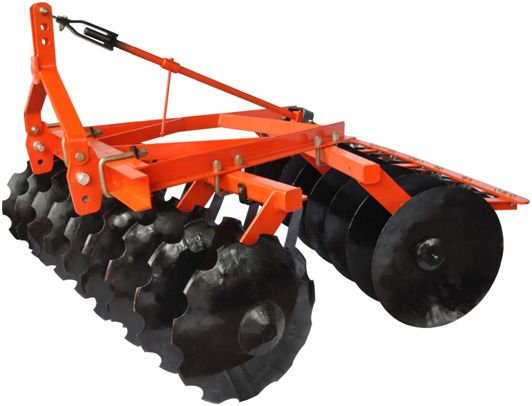

Offset Disc Harrow

SINGLE BOTTOM REVERSIBLE PLOUGH
Advantages & Special Features :
»
 High Quality Boron steel discs.
»
 Tillage depth of the harrow is 6 inch.
»
 Easily transportable as it gets easily attached and mounted.
»
 Maintenance is easy but need to be scheduled.



SINGLE BOTTOM REVERSIBLE PLOUGH
request a quote

MODELS & SPECIFICATIONS

MODELS 6x6 7x7 8x8 9x9 10x10 11x11
NO. OF DISCS 12 14 16 18 20 22
FRAME 75 x 10mm Angle with 100 x 50mm Channel 75 x 10mm Angle with 100 x 50mm Channel 75 x 10mm Angle with 100 x 50mm Channel 75 x 10mm Angle with 100 x 50mm Channel 75 x 10mm Angle with 100 x 50mm Channel 75 x 10mm Angle with 100 x 50mm Channel
GANG BOLT Centre Sqare Solid Bar Centre Sqare Solid Bar Centre Sqare Solid Bar Centre Sqare Solid Bar with Split Gangs Centre Sqare Solid Bar with Split Gangs Centre Sqare Solid Bar with Split Gangs
LENGTH 2030mm 2080mm 2130mm 2230mm 2280mm 2330mm
HEIGHT 1150mm with 560mm Disc 1200mm with 610mm Disc 1150mm with 560mm Disc 1200mm with 610mm Disc 1150mm with 560mm Disc 1200mm with 610mm Disc 1150mm with 560mm Disc 1200mm with 610mm Disc 1150mm with 560mm Disc 1200mm with 610mm Disc 1150mm with 560mm Disc 1200mm with 610mm Disc
DISTANCE BETWEEN DISCS 225mm 225mm 225mm 225mm 225mm 225mm
MOUNTING CAT -I/11 (Optional) CAT -I/11 (Optional) CAT -I/11 (Optional) CAT -I/11 (Optional) CAT -I/11 (Optional) CAT -I/11 (Optional)
DISC DIAMETER (MM) 560/610 (Optional) 560/610 (Optional) 560/610 (Optional) 560/610 (Optional) 560/610 (Optional) 560/610 (Optional)
TYPE OF DISC Notched in front & Plain in Rear Notched in front & Plain in Rear Notched in front & Plain in Rear Notched in front & Plain in Rear Notched in front & Plain in Rear Notched in front & Plain in Rear
BEARING HUBS (Nos.) 4 4 6 8 (Split Gang arrangemet) 8 (Split Gang arrangemet) 8 (Split Gang arrangemet)
WIDTH OF CUT 1375-1400mm 1600-1625mm 1825-1850mm 2050-2075mm 2275-2300mm 2450-2475mm
WEIGHT (kg)(Approximately) 430 with 560mm disc 465 with 560mm disc 530 with 560mm disc 630 with 560mm disc 665 with 560mm disc 700 with 560mm disc
TRACTOR POWER 30-40 HP 40-50 HP 50-60 HP 60-70 HP 70-80 HP 80-100 HP

All above specifications are approximate.
As continuous improvements are contemplated, the illustrations and descriptions are not binding. Manufacturers reserve right to discontinue or make change in above models without any prior notice.
