Seeds Cum Fertilizer Drill

SEEDS CUM FERTILIZER DRILL

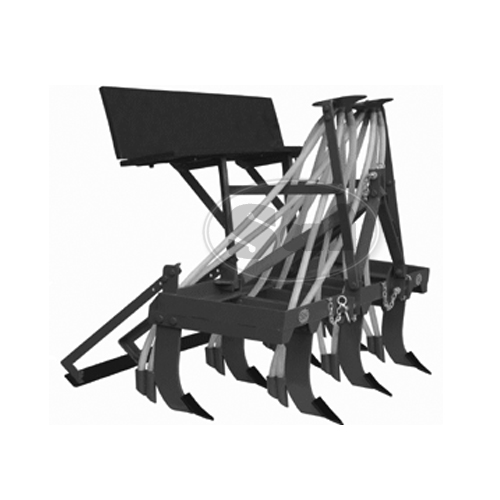

SEEDS CUM FERTILIZER DRILL is a Tractor Hydraulic operated implement that can perform Cultivation and Seeds Sowing operations simultaneously and satisfactorily at any soil conditions. Two separate bowl type openings have been provided for sowing seeds and Fertilizers separately through Flexible Tubes connected to each tines. Rate of flow Seeds and Fertilizers can be controlled manually by persons by sitting on the Wooden bench attached to the mainframe.

Special features
SEEDS CUM FERTILIZER DRILL
request a quote
»
Easy to mount on tractors by three point linkage system.
»
Sturdy Mainframe to resist heavy bending loads.
»
Sowing depth adjustment with the help of tractor hydraulics.
»
Can be also used as Tiller ( Cultivator or Kakari ) by detachment of Drills and can also be used for leveling operations by the attachment of Blade Harrow and Leveler Sheet.

MODELS & SPECIFICATIONS

MODELS LENGTH
in mm.
WIDTH
in mm.
HEIGHT
in mm.
UNDER FRAME
CLEARANCE
in mm.
WEIGHT
in Kgs.
7 TINE 1000 1830 1270 395 237
9 TINE 1000 1830 1270 395 260
