shri sai agro equipments pvt ltd

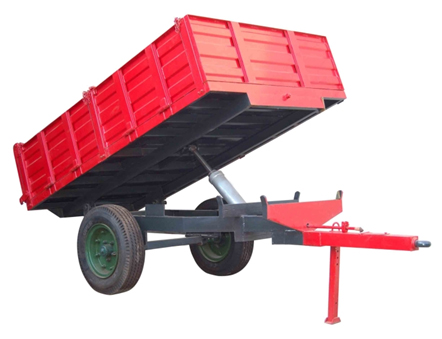

Trolley

SINGLE BOTTOM REVERSIBLE PLOUGH
Advantages & Special Features :
»
 Sturdy main frame and chassis
»
 Heavy duty.
»
 Heavy duty Axle.
»
 Heavy duty hydraulic.



SINGLE BOTTOM REVERSIBLE PLOUGH
request a quote

MODELS & SPECIFICATIONS

NON TIPPING MODELS
MODELS CAPACITY SIZE CHASSIS BOTTOM SHEET SIDE SHEET AXLE WHEEL RIM TYRE
TWO WHEEL NON TIPPING 3 TON & 5 TON 10 X 6 150 X 75 3 mm 2 mm Corrugated 80 mm Heavy Duty Double Plate Discs 7.50 x 16
FOUR WHEEL NON TIPPING 3 TON & 5 TON 10 X 6 150 X 75 3 mm 2 mm Corrugated 80 mm Heavy Duty Double Plate Discs 7.50 x 16
FOUR WHEEL NON TIPPING 9 TON 12 X 6 200 X 75 4 mm 2 mm Corrugated 80 mm Heavy Duty Double Plate Discs 9.00 x 16

TIPPING MODELS
MODELS CAPACITY SIZE CHASSIS BOTTOM SHEET SIDE SHEET AXLE TYRE HYDROLIC JACK
TWO WHEEL TIPPING 3 TON 10 X 6 150 X 75 3 mm 2 mm Corrugated 80 mm 7.50 x 16 5 TON Heavy Duty Double Stage
TWO WHEEL TIPPING 5 TON 10 X 6 150 X 75 3 mm 2 mm Corrugated 80 mm 7.50 x 16 10 TON Heavy Duty Double Stage
FOUR WHEEL TIPPING 5 TON 10 X 6 150 X 75 3 mm 2 mm Corrugated 80 mm 7.50 x 16 10 TON Heavy Duty Double Stage
FOUR WHEEL TIPPING 9 TON 12 X 6 200 X 75 4 mm 2 mm Corrugated 80 mm 9.00 x 16 15 TON Heavy Duty Double Stage


All above specifications are approximate.
As continuous improvements are contemplated, the illustrations and descriptions are not binding. Manufacturers reserve right to discontinue or make change in above models without any prior notice.
